Dingo2020N
Negative Ground Regulator

redline

Also available now: The DINGO D4040P
(1M 18/02/2013 Adobe Acrobat File ),
a new Positive Ground 40A/40A smart solar controller.

Out here...

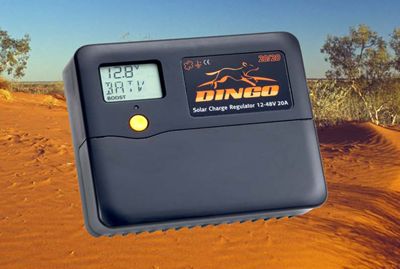

Picture of a DINGO 20/20 Negative Ground control unit
you need something that works


Specifications

Nominal system voltages 12,24,32,36,48 V
Maximum voltage BAT+ to BAT- 100 V
Max 1 minute BAT+ to BAT- volts 120 V
Maximum voltage SOL+ to BAT- 100 V
Max. voltage LOAD+ to BAT+ 70 V
Max. voltage on G relay terminals 90 V
Max. voltage B+sense to BAT+ +/-30 V
Max. continuous charge current 20 A
Max. continuous load current 20 A
Max. load current for five minutes 30 A
Max "G" relay current 300 mA
Battery Temp sensor range -20/+70 °C
Max. storage temperature 70 °C
Supply Current (Dingo only, 12V) 9 mA
Supply Current (Dingo only, 60V) 15 mA
Supply Current max (with access.) 26 mA
Meter Accuracy <+/-2% +/-1 display digit
Max. power wire entry size: 16mm² (6 AWG)
Signal connection block 0.2-1.3mm² (26-16 AWG)


The Dingo2020N is the next generation charge controller from Plasmatronics. It inherits many of the best features of the PL series of controllers. But, thanks to our extensive industry experience and a wealth of customer feedback, we think the Dingo2020N is in a class of its own.

What's the same?

What's new?

Nearly everything else! Without any exaggeration, much too much to list here. Highlights include:

Negative Ground.
This makes it much easier to use in vehicles and easier to understand for people used to working with vehicle systems. The Dingo works well everywhere, but shines in campervans, motor homes, caravans, cars, trucks and boats.
New Communications Bus.
This rugged new bus uses the MODBUS protocol (industrial automation standard proven in noisy environments). Aside from accessories you would expect for a PL descendant like shunt adaptors and data interface units, it is also compatible with Modular System Components. This gives unprecedented flexibility in system design.
More Data Storage.
512 days worth of data can be stored. That's 16 Months worth of Charge and Load Ah, Battery voltage range, and daily State of Charge. Data for 99 days is accessible via the display so if you don't have a computer, you're not locked out.
Enhanced one button interface.
Now includes Reverse gear for when you want to go backwards and Fast Forward for when you need to set a very large number (e.g. a large battery Ah capacity.)
LED backlighting
makes the display readable in any light conditions.
Hidden Wiring.
All the wires are covered. Wiring to the unit can be kept out of sight inside the wall or behind the mounting panel. This makes for a clean installation. The user gets the access they want without making their living space into a distribution board. Especially valuable in mobile applications.
More terminals.
A terminal for every wire. Wiring is simpler and quicker. External electrical commoning points or busbars are not needed and it is easy to understand where the wires should go.
Generator Terminals.
Voltage free contacts, as required by many generator start systems, are now included in the basic controller.
Accessories.
The Accessories available so far include shunt adaptors (DSA) and data adaptors (DUSB, D232 and DNET).
  • The DSA reads external charge or load currents. You can use up to 4 per system.
  • The DUSB provides a USB interface to a computer.This allows the user to download all the data from the controller and change settings if required.
  • The D232 provides an RS232 interface (DTE) designed for remote computer access via a modem.
  • The DNET provides an ethernet interface for use with a Web Browser, SNMP master, or network Modbus master.

We have plans for accessories which will make the Dingo 20/20 highly expandable. Watch this space ...

For more information on DINGO Regulators and Accessories, go to the Downloads section to download manuals and product information.
